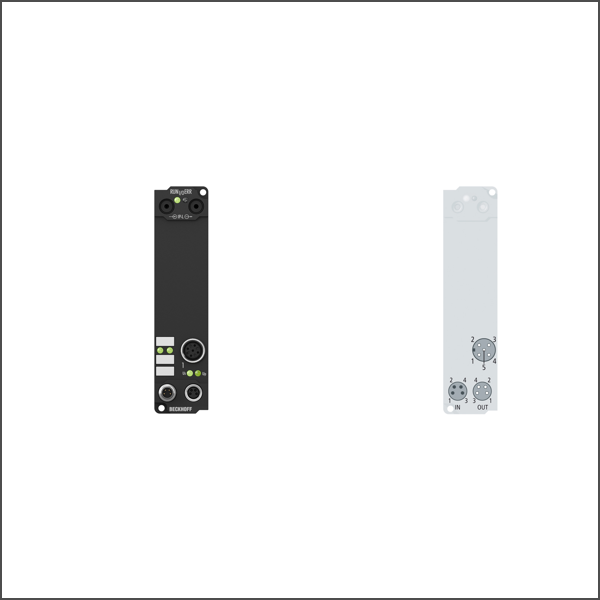

IE6002 Extension Box

Data transfer channels: 2 (1/1), TxD and RxD Data transfer rates: 1200…115,200 baud, 9600 baud (8 bits, no parity, 1 stop bit) is preset RS232 connection: M12, screw type Nominal voltage: 24 V DC (-15 %/+20 %) Bit transfer: RS232 (EIA-232) Bit distortion: < 3 % Cable length: max. 15 m “0” signal voltage: -18…+3 V “1” signal voltage: 3…18 V Data buffer: 128 bytes receive buffer, 16 bytes transmit buffer Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Current consumption: from US (without sensor current) 40 mA Bit width in the process image: input/output: 3 x 8 bit user data, 1 x 8 bit control/status (up to 5 x 8 bit user data are possible) Electrical isolation: RS232/control voltage: 500 V, to the fieldbus: yes, via IP-Link Operating/storage temperature: 0…+55 °C/-25…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable Approvals/markings: CE, UL
