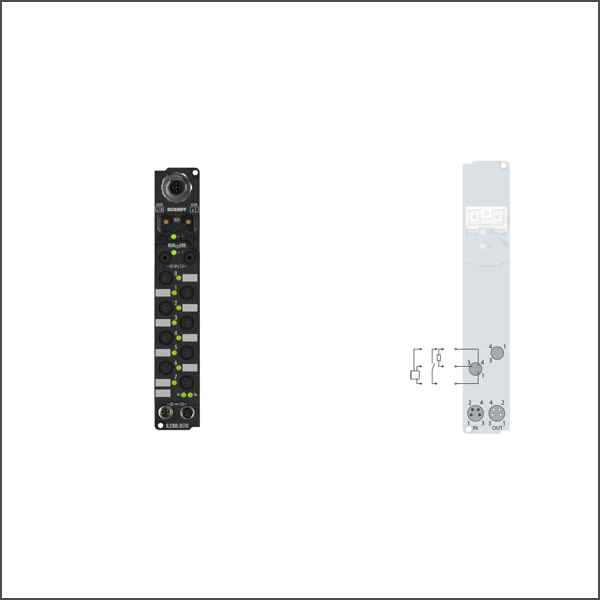

IL2300-B510 Coupler Box

Extension modules: max. 120 with max. 128 byte input and 128 byte output data Digital peripheral signals: max. 960 inputs and 960 outputs Analog peripheral signals: max. 60 inputs and 60 outputs Number of PDOs (CANopen): 16 send and 16 receive process data objects Additional CANopen features: life, node guarding, emergency object, variable mapping, store/restore Configuration possibility : through KS2000 or the controller (service data objects) Data transfer rates: automatic detection of 10 kbaud up to 1 Mbaud Bus interface: 1 x M12 plug, 5-pin Power supply: control voltage: 24 V DC (-15 %/+20 %); load voltage: according to I/O type Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Box supply current: 45 mA + current consumption of sensors, max. 0.5 A Auxiliary power current: according to I/O type Electrical isolation: control voltage/fieldbus: 500 V, control voltage/inputs or outputs: according to I/O type Operating/storage temperature: 0…+55 °C/-25…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable Approvals/markings: CE, UL
