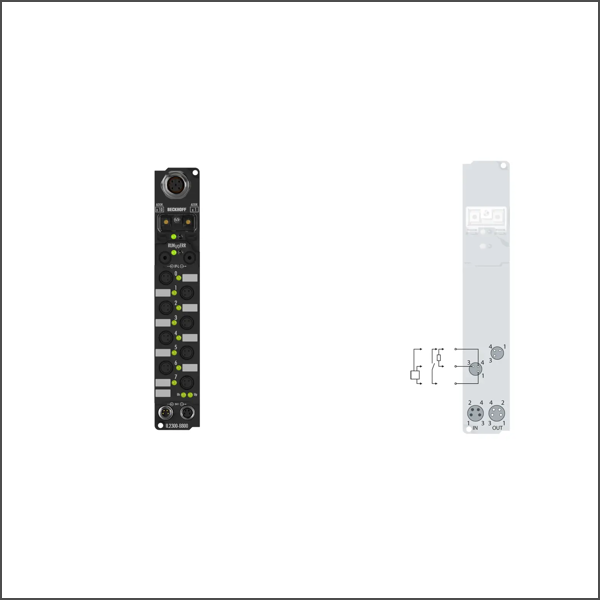

IL2300-B800 Coupler Box
SKU: IL2300-B800
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The IL2300Bxxx Coupler Box module combines four digital inputs with 3.0 ms input filter and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit proof and protected against inverse polarity. Number of I/O stations: 69.
Buy currently uses Select Automation shop pricing and checkout.
Extension modules: max. 120 with max. 512 byte input and 512 byte output data
Digital peripheral signals: max. 960 inputs and 960 outputs
Analog peripheral signals: max. 252 inputs and 252 outputs
Protocol: open, documented protocol
Configuration possibility : via KS2000
Bus interface: 1 x M12 socket, 5-pin, B-coded
Power supply: control voltage: 24 V DC (-15 %/+20 %); load voltage: according to I/O type
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Box supply current: 45 mA + current consumption of sensors, max. 0.5 A
Auxiliary power current: according to I/O type
Electrical isolation: control voltage/fieldbus: yes, control voltage/inputs or outputs: according to I/O type
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
