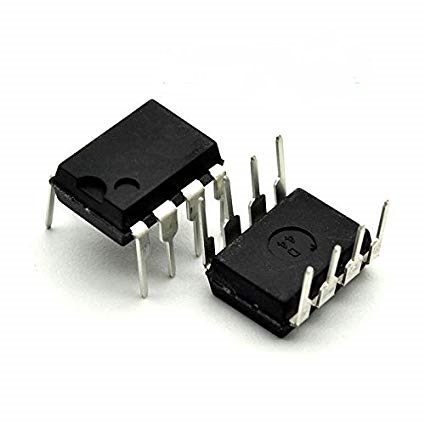

393N-8 Comparator Dual 5MV LM2903 8pin
SKU: INC-0003-C01
Price on request
Availability: In Stock (22 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The LM393N-8 and LM2903-8 are dual low-power comparators that can run on either a single or two power supplies.
M393N and LM2903 devices are made up of two independent precision voltage comparators.
These comparators are designed to run on a single power source across a wide voltage range.
Dual-supply operation is conceivable, and the low power-supply current drain is unaffected by the voltage magnitude.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage Range: 2V to 36V (single supply) or ±1V to ±18V (dual supply).
Supply Current: 0.4mA per comparator.
Input Offset Voltage: 2mV, 5mV (maximum).
Input Offset Current: 5nA.
Input Bias Current: 25nA.
Common Mode Rejection Ratio (CMRR): 70dB.
Power Supply Rejection Ratio (PSRR): 85dB.
Voltage Gain: 200V/mV.
Output Voltage Swing: 0V to (Vcc - 1.5V).
Response Time: 1.3µs.
Operating Temperature Range: 0°C to +70°C (commercial), -40°C to +85°C (industrial), -55°C to +125°C (military).
