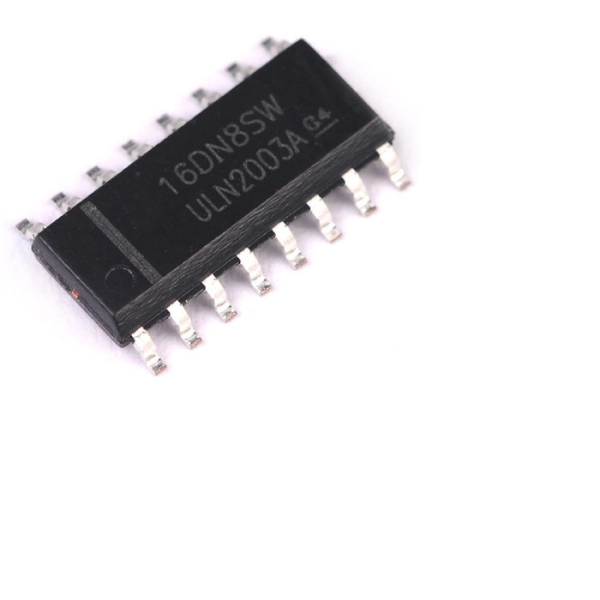

ULN2003A Seven Darlington Array
SKU: INC-0008-C01
Sold by Select Automation
Final price R 4.03
R 3.50 excl. VAT
Availability: In Stock (43 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The ULN2003A consists of seven NPN Darlington pairs with high-voltage outputs and common-cathode clamp diodes for switching inductive loads.
Each Darlington pair can drive up to 500mA at 50V, making it ideal for a variety of relay, light, and stepper motor driving applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Current (I\_C): 500mA per channel (continuous).
Peak Output Current: 600mA (maximum).
Output Voltage (V\_CE): 50V maximum.
Input Voltage (V\_BE): 30V maximum.
Output Saturation Voltage (V\_CE(Sat)): 1.6V at I\_C = 350mA.
Input Current (I\_IN): 1.35mA (typical) at V\_IN = 5V.
Output Leakage Current (I\_CEX): 50µA maximum at V\_CE = 50V.
Clamp Diode Forward Voltage (V\_F): 1.7V at I\_F = 350mA.
