N82S137N OTP ROM
SKU: INC-0009-C01
Sold by Select Automation
Final price R 6.00
R 5.22 excl. VAT
Availability: In Stock (13 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

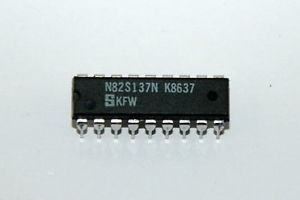

The N82S137N is a high-performance, one-time programmable (OTP) read-only memory device with a capacity of 4K bits and a 1K x 4 layouts.
This chip is intended for permanent data storage, in which the data is written once and cannot be altered. It is widely utilized in applications that need long-term memory retention.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Memory Capacity: 4K bits (1024 x 4).
Access Time: 60ns maximum.
Programming Voltage: 13.5V.
Operating Voltage: 5V.
Input Low Voltage (V\_IL): -0.3V to 0.8V.
Input High Voltage (V\_IH): 2V to Vcc + 0.3V.
Output Low Voltage (V\_OL): 0.4V (max) at I\_OL = 2.6mA.
Output High Voltage (V\_OH): 2.4V (min) at I\_OH = -400µA.
Input Leakage Current (I\_IL): ±10µA maximum.
Output Leakage Current (I\_OL): ±10µA maximum.
Power Supply Current (I\_CC): 30mA maximum.
Power Dissipation: 300mW maximum.
