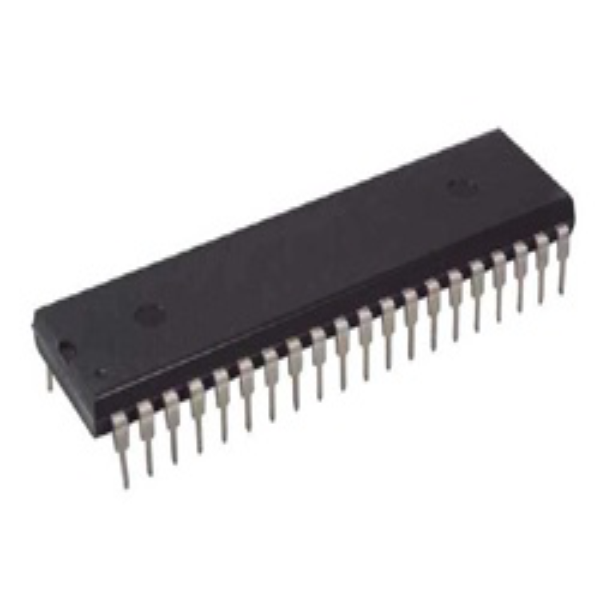

SN74LS612N Parallel IO Port, General Purpose
SKU: INC-0013-C01
Sold by Select Automation
Final price R 6.00
R 5.22 excl. VAT
Availability: In Stock (15 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SN74LS612N is a high-performance interface controller that enables parallel communication between microcontrollers and peripheral devices.
Its architecture enables efficient data transfer in programmable logic and microprocessor-based devices.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Supply Voltage (Vcc): 5V ±5%.
Input High Voltage (V\_IH): 2.2V (minimum).
Input Low Voltage (V\_IL): 0.8V (maximum).
Output High Voltage (V\_OH): 2.0V (minimum) at I\_OH = -0.4mA.
Output Low Voltage (V\_OL): 0.4V (maximum) at I\_OL = 8mA.
Input Current (I\_IN): 20µA maximum at V\_IN = 5.5V.
Output Current (I\_OUT): 40mA maximum.
Timing Characteristics:
Propagation Delay Time (t\_PLH/t\_PHL): 22ns.
Input Capacitance (C\_IN): 5pF.
Output Capacitance (C\_OUT): 10pF.
