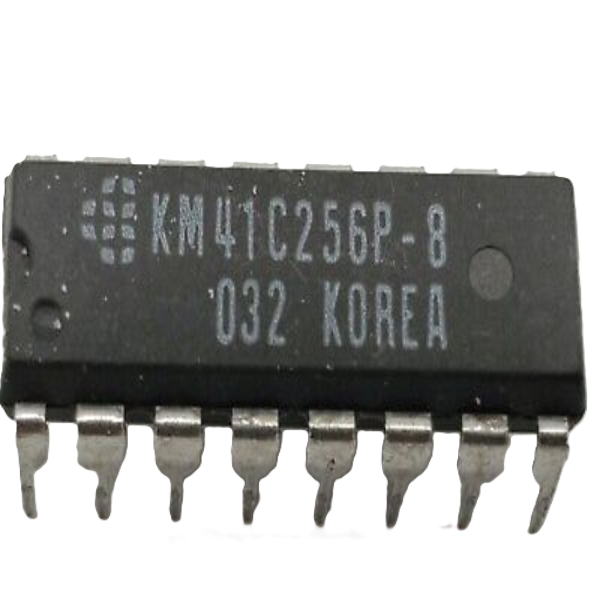

KM41C256P-8 Fast Page DRAM, 256KX1, 80ns, CMOS, PDIP16
SKU: INC-0019-C01
Sold by Select Automation
Final price R 6.00
R 5.22 excl. VAT
Availability: In Stock (24 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The KM41C256P-8 is a 256K x 1-bit Dynamic RAM with 262,144 words per bit.
It is built using sophisticated CMOS technology, which results in low power consumption and strong noise immunity.
The fast page mode function provides for quick access to data inside a single row, making it ideal for applications that require high-speed retrieval.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Speed Category: 80ns.
Memory Capacity: 256K x 1 bit (262,144 bits).
DRAM Type: Fast Page Mode.
Technology: CMOS (Complementary Metal-Oxide-Semiconductor).
Operating Voltage (Vcc): 5V ±10%.
Input High Voltage (VIH): 2.4V minimum.
Input Low Voltage (VIL): 0.8V maximum.
Output High Voltage (VOH): 2.4V minimum at IOH = -4mA.
Output Low Voltage (VOL): 0.4V maximum at IOL = 8mA.
Timing Characteristics:
Access Time: 80ns (maximum).
Cycle Time: 125ns (minimum).
Row Address Strobe (RAS) Access Time: 50ns.
Column Address Strobe (CAS) Access Time: 20ns.
