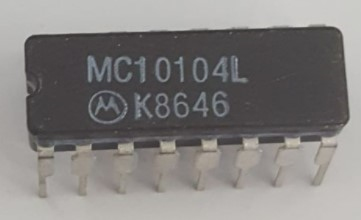

MC10104L AND GATE
SKU: INC-0022-C01
Sold by Select Automation
Final price R 6.00
R 5.22 excl. VAT
Availability: In Stock (21 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The MC10104L is a high-performance quad AND gate with four separate two-input AND gates.
This device is designed for high-speed, low-power operation and has both AND and NAND outputs for one of the gates, making it suitable for a wide range of digital logic applications.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Supply Voltage (Vcc): 5V ±10%.
Input High Voltage (VIH): 2.0V minimum.
Input Low Voltage (VIL): 0.8V maximum.
Output High Voltage (VOH): 2.4V minimum at IOH = -2mA.
Output Low Voltage (VOL): 0.4V maximum at IOL = 4mA.
Power Dissipation (Pd): 35mW typical per gate.
Timing Characteristics:
Propagation Delay (tpd): 2.7ns typical.
