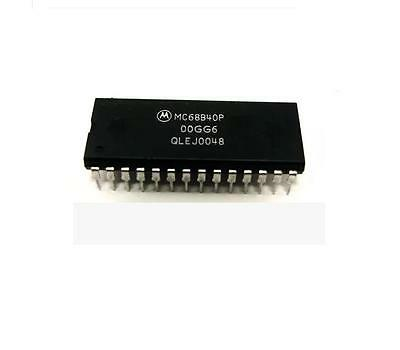

MC68B40P Analog Waveform Generation MOS PDIP 28
SKU: INC-0025-C01
Sold by Select Automation
Final price R 6.00
R 5.22 excl. VAT
Availability: In Stock (11 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The MC68B40P is a programmable timer module that is commonly utilized in various timing and signal production applications.
The MC68B40P can perform several functions, including frequency measurements, event counting, square wave generation, gated delay signals, single pulses with configurable durations, and pulse width modulation.
It's ideal for projects that require accurate timing and interrupt-driven operations because it features three 16-bit binary counters, three control registers, and a status register.
It is an effective component for adding flexibility and precision to your electronic designs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Power Supply: Operates from a single 5-volt power supply.
Compatible: Fully TTL compatible.
Processor Family: Part of the M6800 Family.
System Clock Frequency: Capable of 8 MHz operations.
Counters: Three 16-bit binary counters under software control.
Control Registers: Three corresponding control registers.
Status Register: One status register.
Gating: Selectable gating for frequency or pulse-width comparisons.
Interrupts: Programmable interrupts (IRQ).
Outputs: Allows for three maskable outputs.
Inputs: Includes three asynchronous external clock and gate trigger inputs.
Output Modes: Can generate system interrupts, square waves, gated delay signals, single pulses of controlled duration, and pulse width modulation.
