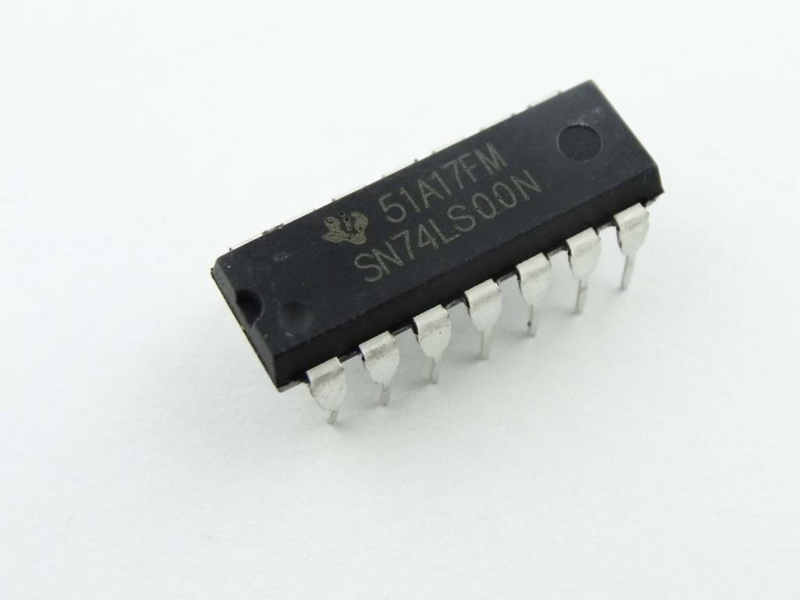

SN74LS00N NAND GATE LS Series 2 Input TTL
SKU: INC-0027-C02
Sold by Select Automation
Final price R 6.00
R 5.22 excl. VAT
Availability: In Stock (46 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SN74LS00N is a member of the LS (Low-Power Schottky) TTL logic family, with four independent 2-input NAND gates.
These gates are commonly employed in digital circuits to implement logic functions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage Range: 4.75V to 5.25V.
Input Voltage High (VIH): 2V minimum.
Input Voltage Low (VIL): 0.8V maximum.
Output Voltage High (VOH): 3.5V minimum at IOH = -0.4 mA.
Output Voltage Low (VOL): 0.25V maximum at IOL = 4 mA.
Propagation Delay Time (tPD): 10 ns, maximum 15 ns.
Input Current HIGH (IIH): 20 µA maximum.
Input Current LOW (IIL): -0.4 mA maximum.
Power Dissipation (PD): 40 mW per gate at VCC = 5V.
Operating Temperature Range: 0°C to 70°C.
