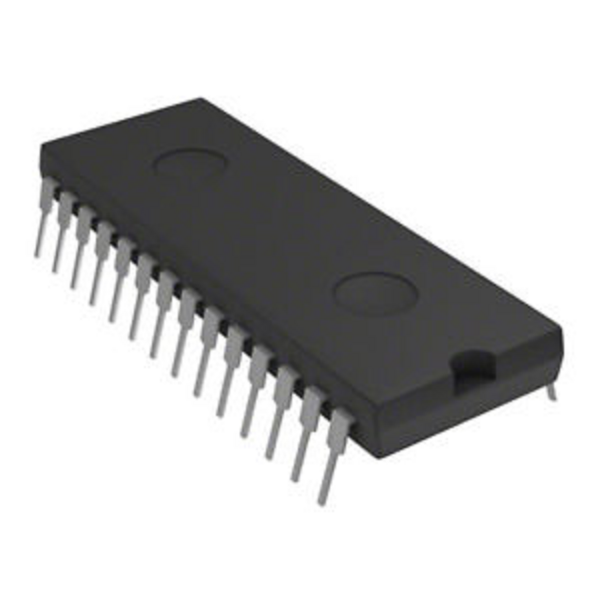

TC5565APL-15 Standard SRAM 8KX8 150 NS CMOS PDIP287
SKU: INC-0028-C02
Sold by Select Automation
Final price R 6.00
R 5.22 excl. VAT
Availability: In Stock (32 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Toshiba's TC5565APL-15 is a typical SRAM (Static Random Access Memory) chip.
Its structure is 8,192 words by 8 bits (8Kx8), giving it a 65,536-bit total memory capacity.
This SRAM chip is suited for microprocessor applications that require fast performance, low power consumption, and battery backup.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Memory Organization: 8,192 words by 8 bits (65,536 bits).
Access Time: 150 nanoseconds (maximum).
Supply Voltage: 5V (single power supply).
Standby Current: 100 µA (maximum) at 70°C.
Operating Current: 5mA/MHz (maximum).
Power Dissipation: 27.5 mW/MHz (maximum).
Control Inputs: Two chip enable inputs (CE1, CE2) and one output enable input (OE).
Data Retention Supply Voltage: 2.0V - 5.5V.
Package Type: 28-pin plastic DIP (PDIP).
