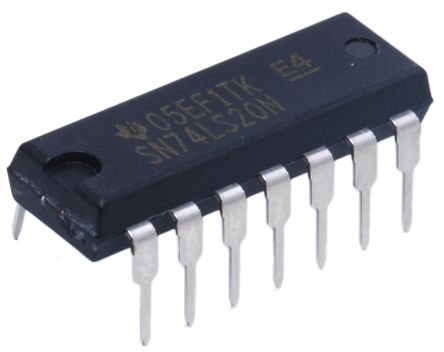

SN74LS20N NAND GATE LS Series 2 Function PDIP 14
SKU: INC-0029-C02
Sold by Select Automation
Final price R 6.00
R 5.22 excl. VAT
Availability: In Stock (41 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SN74LS20N is a twin 4-input NAND gate from Texas Instruments' 74LS series.
This gadget has two independent 4-input NAND gates. It is commonly utilized for constructing different logic functions in digital circuits.
Low Power Consumption: Designed for energy efficiency, making it excellent for battery-powered and low-power applications.
High-Speed Operation: Provides short propagation delay times, typically about 15 nanoseconds, ensuring rapid signal processing.
TTL Compatibility: Works with conventional Transistor-Transistor Logic (TTL) levels, making it simple to interface with other TTL components.
Robust Construction: Available in a long-lasting 14-pin Dual Inline Package (PDIP) appropriate for a wide range of digital logic applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage Range: 4.75V to 5.25V.
Input Voltage High (VIH): 2V minimum.
Input Voltage Low (VIL): 0.8V maximum.
Output Voltage High (VOH): 3.5V minimum at IOH = -0.4 mA.
Output Voltage Low (VOL): 0.5V maximum at IOL = 8 mA.
Propagation Delay Time (tPD): 15 ns.
Input Current HIGH (IIH): 20 µA maximum.
Input Current LOW (IIL): -1.6 mA maximum.
Power Dissipation (PD): 20 mW per gate at VCC = 5V.
Operating Temperature Range: 0°C to 70°C.
Number of Gates: 2 channels, each with 4 inputs.
Package Type: 14-pin Dual Inline Package (PDIP).
