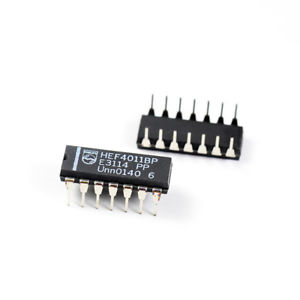

HEF4011BP NAND GATE 4000/14000/4000 Series
SKU: INC-0031-C02
Sold by Select Automation
Final price R 6.00
R 5.22 excl. VAT
Availability: In Stock (80 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Quadruple 2-input NAND gate: Each gate performs the NAND function on two inputs, enabling flexibility in logic circuit design.
High Noise Immunity: Outputs are fully buffered, ensuring reliable performance in noisy settings.
Wide Supply Voltage Range: Operates efficiently between 3V and 15V, making it suited for a variety of voltage levels.
Low Power Consumption: Suitable for battery-powered and low-power applications.
Temperature Range: Operates reliably from -40°C to +125°C.
Package Type: Available in a 14-pin Dual In-line Package (PDIP), which is simple to handle and integrate into circuit boards.
This component is widely utilized in digital logic circuits when low power consumption and strong noise immunity are required.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage Range: 3V to 15V.
Positive Logic NAND Gate: Four independent 2-input NAND gates.
High Noise Immunity: Outputs are fully buffered.
Low Power Consumption: CMOS technology ensures efficient power usage1.
Propagation Delay: 125 ns at VDD = 10V.
Input High Voltage (VIH): 3.5V minimum.
Input Low Voltage (VIL): 1.5V maximum.
Output High Voltage (VOH): 4.95V minimum at VDD = 5V.
Output Low Voltage (VOL): 0.05V maximum at VDD = 5V.
Operating Temperature Range: -40°C to +85°C.
