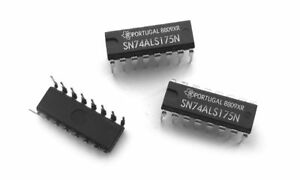

SN74ALS175N D Flip-Flop ALS Series 1 Function Positive Edge Trigger
SKU: INC-0035-C02
Sold by Select Automation
Final price R 6.00
R 5.22 excl. VAT
Availability: In Stock (14 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SN74ALS175N is a quadruple positive-edge-triggered D-type flip-flop that supports direct clear.
This device is part of the Advanced Low Power Schottky (ALS) series.
Quadruple D-Type Flip-Flops: The device includes four separate D-type flip-flops.
Positive-Edge Triggered: The data at the D input is sent to the Q output on the clock pulse's positive edge.
TTL Circuitry: Uses TTL (Transistor-Transistor Logic) circuitry to provide consistent and compatible performance.
Buffered Outputs: Each flip-flop produces complimentary outputs, resulting in improved overall performance.
Direct-Clear Input: This allows you to reset the flip-flops.
Because of its great performance and reliability, this D flip-flop is ideal for a wide range of logic circuits and timing applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage (VCC): 4.5V to 5.5V.
Input Voltage High (VIH): 2V minimum.
Input Voltage Low (VIL): 0.8V maximum.
Output Voltage High (VOH): 2.7V minimum at IOH = -0.4 mA.
Output Voltage Low (VOL): 0.4V maximum at IOL = 8 mA.
Propagation Delay Time (tPD): 15 ns1.
Pulse Width Minimum (tw): 5 ns.
Setup Time (tsetup): 20 ns minimum.
Hold Time (thold): 5 ns minimum.
Operating Temperature Range: 0°C to 70°C.
Package Type: 16-pin Dual Inline Package (PDIP)
