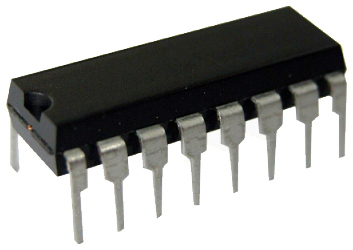

MC3479P Stepper Motor Controller
SKU: INC-0037-C02
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The MC3479P stepper motor driver is designed to work with two-phase stepper motors.
Operational Modes: Allows for full-step and half-step operations. The direction can be changed using the CW/CCW input1.
TTL/CMOS compatible inputs.
Output Drive Capability: Can drive up to 350 mA per coil.
Single Supply Operation: Uses a single supply voltage range of 7.2V to 16.5V.
Integrated clamp diodes: Clamp diodes are included to decrease back EMF.
Hysteresis Input: At least 400 mV input hysteresis.
Phase Logic: Can be set to Phase A with an open-collector output to signify Phase A driving status.
Package Type: 16-pin Dual In-line Package (PDIP).
Operating temperatures range from 0°C to +70°C.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage (VCC): 7.2V to 16.5V.
Output Drive Current: Up to 350 mA per coil.
Logic Input Levels:
High (VIH): 2V (minimum)
Low (VIL): 0.8V (maximum)
Quiescent Supply Current (ICC):
8 mA typical, 16 mA maximum.
Step Frequency: Up to 25 kHz.
Full-Step and Half-Step Modes: Supports both modes for precise motor control.
Integrated Clamp Diodes: Provides protection against back EMF.
Output On-State Voltage (VOH):
1.8V typical at 250 mA.
Output Off-State Current (IOH):
50 µA maximum.
Operating Temperature Range: 0°C to +70°C.
Package Type: 16-pin Dual In-line Package (PDIP).
