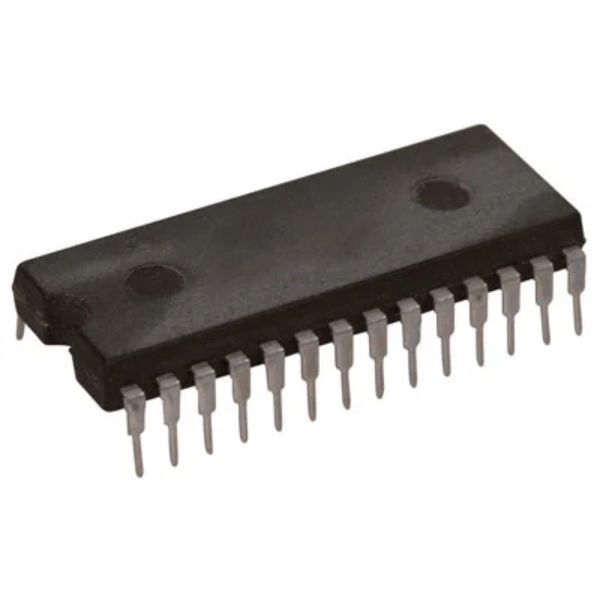

TC5565PL-15 Standard SRAM, 8KX8, 150ns, CMOS, PDIP28
SKU: INC-0044-C02
Sold by Select Automation
Final price R 6.00
R 5.22 excl. VAT
Availability: In Stock (11 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The TC5565PL-15 is a typical 8K × 8 bit (64K-bit) SRAM.
It is built with CMOS technology, which gives faster performance and lower power consumption than NMOS technology.
An excellent alternative for applications demanding minimal power dissipation and good performance.
Ideal for use as memory buffers, cache memory, and storage in a variety of electronic systems.
Now obsolete, making it unusual for retro projects and repairs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Memory Configuration: 8,192 words by 8 bits (65,536 bits).
Access Time: 150 nanoseconds.
Technology: CMOS.
Package Type: 28-pin Plastic Dual In-line Package (PDIP).
Supply Voltage: 5V ± 10%.
Power Dissipation:
Active: 275 mW.
Standby: 2.5 mW.
Operating Temperature: 0°C to 70°C (Commercial Grade).
Input Levels: TTL-compatible inputs.
Output Characteristics: Tri-state output.
Standby Current: 100 µA (Max).
Cycle Time: 150 ns.
Operating Current: 5 mA/MHz (Max).
