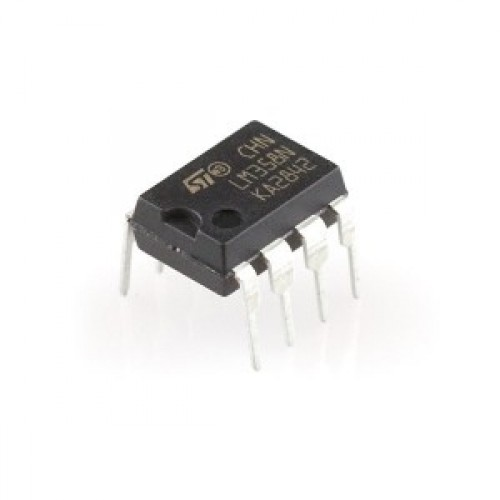

LM 358N ONSD-31148 OPAMP Dual ADJ DIP8
SKU: INC-0047-C02
Sold by Select Automation
Final price R 3.73
R 3.24 excl. VAT
Availability: In Stock (43 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The LM358N is a versatile and frequently used dual operational amplifier (op-amp) intended for a variety of analogue applications.
Because of its durability and versatility, this op-amp is widely utilized in analogue circuit designs.
Buy currently uses Select Automation shop pricing and checkout.
General Specifications:
Number of Channels: 2 (Dual op-amp).
Package: 8-pin Dual In-line Package (DIP8).
Supply Voltage: 3V to 32V (single supply) or ±1.5V to ±16V (dual supply).
Operating Temperature Range: 0°C to 70°C.
Electrical Characteristics:
Input Offset Voltage: 2 mV, 5 mV (maximum).
Input Bias Current: 45 nA.
Input Offset Current: 5 nA.
Gain Bandwidth Product: 1 MHz.
Output Voltage Swing: 0V to 30V (single supply), −1.5V to +1.5V (dual supply).
Common-Mode Rejection Ratio (CMRR): 70 dB.
Supply Current: 500 µA (maximum).
Slew Rate: 0.3 V/µs.
Output Short-Circuit Current: 40 mA.
Large Signal Voltage Gain: 100 dB.
