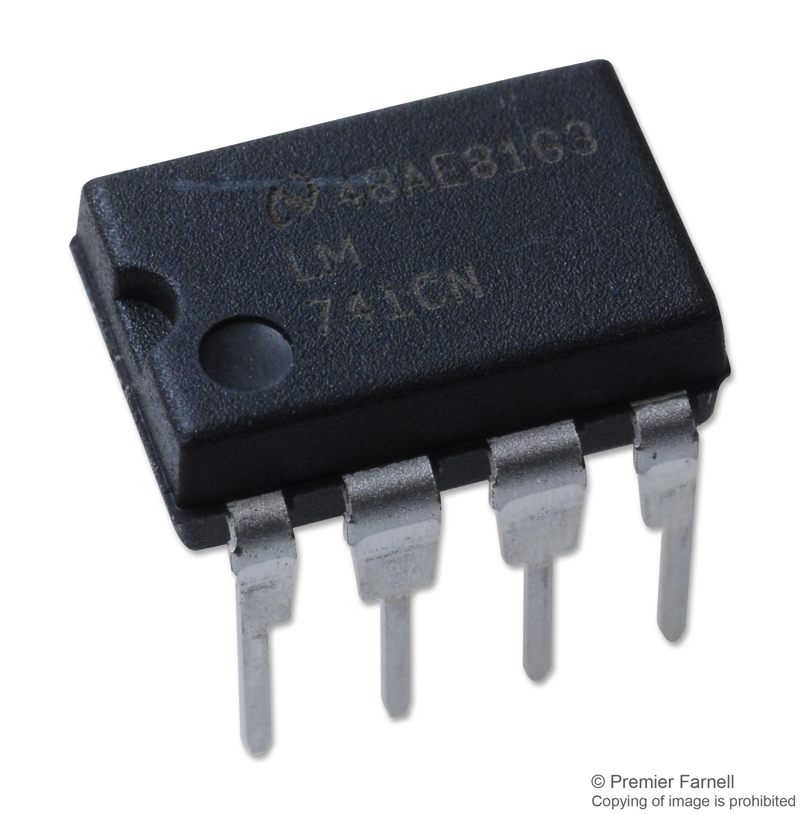

LM741CN/NOPB OPAMP Single ADJ PDIP8
SKU: INC-0048-C02
Sold by Select Automation
Final price R 8.44
R 7.34 excl. VAT
Availability: In Stock (27 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The LM741CN/NOPB is a common general-purpose single operational amplifier (op-amp) that is noted for its versatility and durability.
In conclusion, the LM741CN/NOPB is a versatile and dependable operational amplifier appropriate for a wide range of analogue circuit applications.
Whether you need it for simple signal amplification or more complicated analogue computations, its strong features make it a popular choice among engineers and enthusiasts alike.
Buy currently uses Select Automation shop pricing and checkout.
General Specifications:
Single Op-Amp: One operational amplifier per IC.
Package: 8-pin Dual In-line Package (DIP8).
Supply Voltage Range: ±10V to ±22V.
Operating Temperature Range: 0°C to 70°C.
Electrical Characteristics:
Input Offset Voltage: 2 mV, 6 mV (maximum).
Input Bias Current: 80 nA.
Input Offset Current: 20 nA.
Gain Bandwidth Product: 1 MHz.
Slew Rate: 0.5 V/µs.
Open-Loop Voltage Gain: 200,000.
Common-Mode Rejection Ratio (CMRR): 90 dB.
Power Supply Rejection Ratio (PSRR): 96 dB.
Output Voltage Swing: ±14V with ±15V supply voltage.
Output Short-Circuit Current: ±25 mA.
Supply Current: 1.7 mA.
Voltage Gain: Minimum 20,000 at RL = 2 kΩ.
