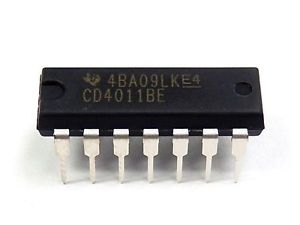

CD4011BE TISD-41417 QUAD 2I/P NAND GATE DIP 14 25/T
SKU: INC-0049-C02
Sold by Select Automation
Final price R 5.69
R 4.95 excl. VAT
Availability: In Stock (18 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The CD4011BE is a flexible, high-reliability integrated circuit that is widely used in digital electronics.
It contains four independent 2-input NAND gates in a single package, making it excellent for use in logic circuits.
The CD4011BE's capability and flexibility make it an essential component in educational, hobbyist, and professional digital circuits.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Logic Type: NAND.
Number of Gates: 4 (Quad).
Number of Inputs per Gate: 2.
Package Type: DIP (Dual In-line Package).
Number of Pins: 14.
Supply Voltage Range: 3V to 18V.
Maximum Quiescent Current: 1 µA.
Operating Temperature Range: -55°C to 125°C.
Output Current High, Low: 3.4 mA.
Maximum Propagation Delay: 90 ns.
Input Voltage Low (Max): 1.5V.
Input Voltage High (Min): 3.5V.
Power Dissipation: 200mW.
Max Output Voltage: VDD - 1.5V.
Min Output Voltage: VSS + 1.5V.
