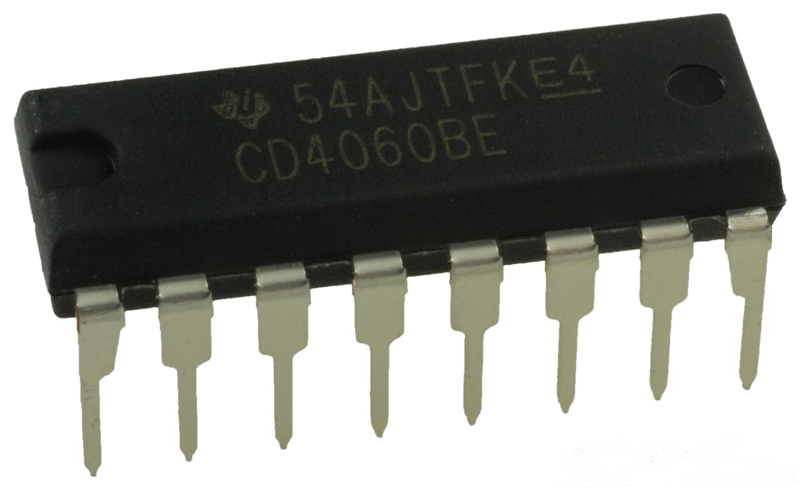

CD4060BE TISD-41419 14 BIT BIN CounterPDIP16 25/TU
SKU: INC-0051-C03
Sold by Select Automation
Final price R 4.55
R 3.96 excl. VAT
Availability: In Stock (25 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The CD4060BE is a multifunctional integrated circuit that includes an oscillator and a 14-stage ripple-carry binary counter.
This IC is commonly used in applications requiring precision timing, frequency division, or clock generating.
It is placed in a DIP-16 container, making it simple to include into a variety of electronics projects.
This integrated circuit's ability to combine an oscillator and a counter in a single package makes it extremely adaptable and useful for a wide range of electronic applications, from basic time delays to more complex frequency division chores.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Counter Type: 14-bit Binary.
Package Type: DIP-16 (Dual In-line Package).
Number of Pins: 16.
Supply Voltage Range: 3V to 18V.
Maximum Quiescent Current: 5 µA.
Operating Temperature Range: -55°C to 125°C.
Output Current High, Low: ±1.5 mA.
Maximum Count Rate: 12 MHz.
Input Voltage Low (Max): 0.9V to 1.5V.
Input Voltage High (Min): 3.5V to 7.0V.
Reset Voltage (Active High): 70% VDD.
Propagation Delay Time: 140 ns (at 5V).
Frequency Range: 0 to 12 MHz.
