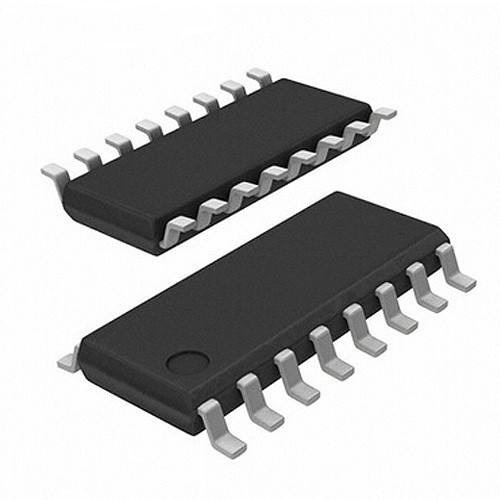

74HC595D Shift register / Latch serial to parrallel 16 PIN
SKU: INC-0053-C03
Sold by Select Automation
Final price R 1.69
R 1.47 excl. VAT
Availability: In Stock (25 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 74HC595D integrated circuit is an 8-bit serial-in, serial, or parallel-out shift register with output latches and three-state outputs.
This integrated circuit is often used for converting serial data to parallel data, enabling for efficient control of several outputs with fewer microcontroller pins.
The 74HC595D is ideal for applications that require efficient data conversion and control with fewer I/O pins.
Its adaptability has made it a popular choice for digital communication and display systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Register Type: 8-bit Shift Register with Output Latches.
Package Type: DIP-16 (Dual In-line Package with 16 Pins).
Supply Voltage Range: 2.0V to 6.0V.
Maximum Quiescent Current: 80 µA (at 6V).
Operating Temperature Range: -40°C to 85°C.
Maximum Clock Frequency: 100 MHz.
Output Current High: -7.8 mA (at 5V).
Output Current Low: 7.8 mA (at 5V).
Propagation Delay Time: 18 ns (at 5V).
3-State Outputs: Yes.
Setup Time (Data): 3 ns (at 5V).
Hold Time (Data): 5 ns (at 5V).
Reset Function: Asynchronous (Active Low).
Latch Function: Yes.
Cascading Capability: Yes (Q7S Serial Output).
