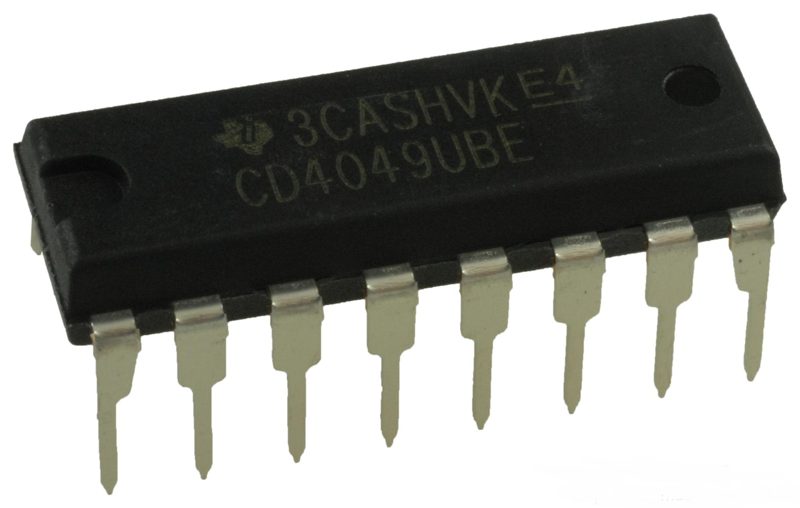

CD4049UBE HEX CMOS Inverter -0.5 - 20V 16 PIN
SKU: INC-0056-C03
Sold by Select Automation
Final price R 4.80
R 4.17 excl. VAT
Availability: In Stock (25 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The CD4049UBE is a flexible hex CMOS inverter and buffer IC that converts CMOS voltage levels to TTL/DTL logic levels while being noise-free and low in power consumption.
It has six independent inverters/buffers and comes in a 16-pin DIP package.
This integrated circuit is extensively employed in digital applications that need signal inversion, buffering, or level conversion.
The CD4049UBE stands out for its adaptability in a variety of digital circuits, including dependable signal inversion, buffering, and logic level conversion.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Inverter Type: Hex CMOS.
Package Type: DIP-16 (Dual In-line Package with 16 Pins).
Supply Voltage Range: -0.5V to 20V.
Maximum Quiescent Current: 1 µA.
Operating Temperature Range: -55°C to 125°C.
Sink Current High: -3.6 mA.
Sink Current Low: 3.6 mA.
Input Voltage Low (Max): 1.5V.
Input Voltage High (Min): 3.5V.
Propagation Delay Time: 30 ns at 10V.
