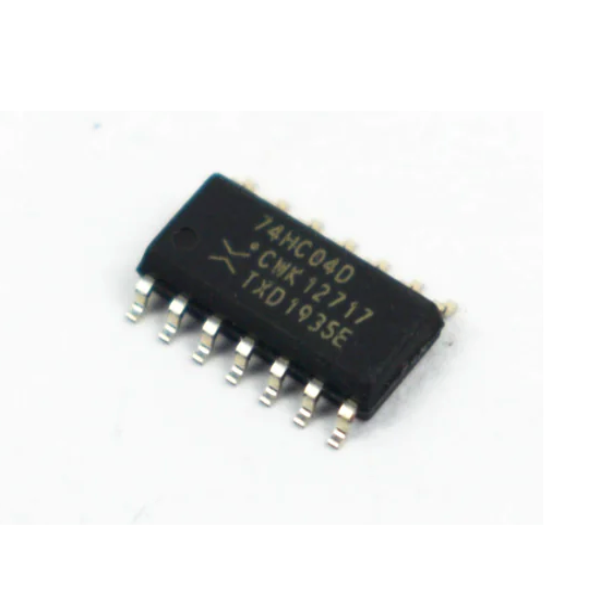

74HC04D HEX Buffered CMOS Inverter 14 PIN
SKU: INC-0058-C03
Sold by Select Automation
Final price R 2.12
R 1.84 excl. VAT
Availability: In Stock (25 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 74HC04D is a high-speed CMOS hex inverter designed using silicon gate CMOS technology.
This integrated circuit includes six separate inverters/buffers in a 14-pin package that is intended for high-speed operation, low power consumption, and excellent noise immunity.
The 74HC04D integrated circuit is frequently utilized due to its high speed capability, low power consumption, and adaptability in delivering signal inversion and buffering in digital systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Inverter Type: Hex Buffered CMOS.
Package Type: DIP-14 (Dual In-line Package with 14 Pins).
Supply Voltage Range: 2.0V to 6.0V.
Quiescent Current: 80 µA.
Operating Temperature Range: -40°C to 85°C.
Maximum Clock Frequency: 36 MHz.
Output Current High: -7.8 mA (at 5V).
Output Current Low: 7.8 mA (at 5V).
Propagation Delay Time: 8 ns at 5V.
Noise Immunity: High.
Input Protection: Clamping Diodes.
