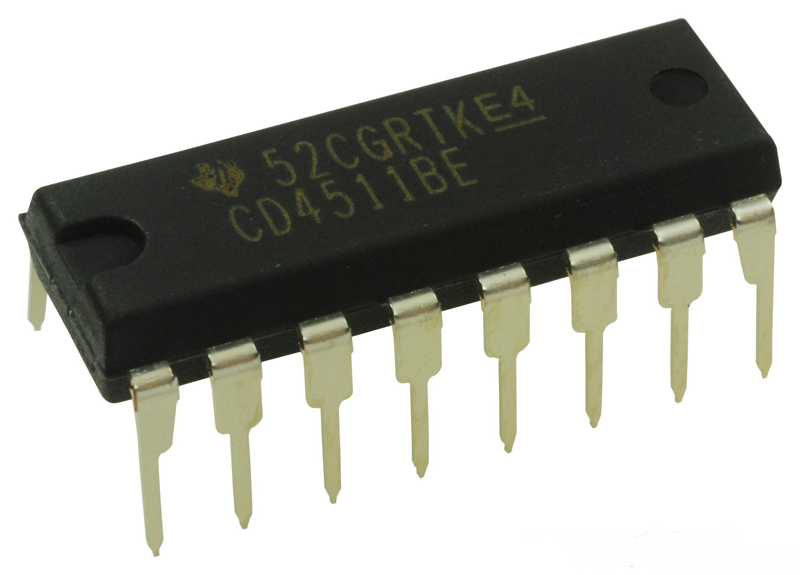

CD4511BE Decoder Driver Non Inverting 3-18V 16 PIN
SKU: INC-0059-C03
Sold by Select Automation
Final price R 4.53
R 3.94 excl. VAT
Availability: In Stock (25 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The CD4511BE is a 16-pin DIP IC designed to power 7-segment LED displays.
It integrates CMOS logic and NPN bipolar transistor output devices into a single monolithic structure, resulting in robust performance and great noise immunity.
This IC is perfect for translating BCD data to 7-segment display codes, which allows LED segments to be driven directly.
Because of its reliable performance, high noise tolerance, and low power consumption, the CD4511BE is ideal for numerical display applications.
It streamlines the process of driving 7-segment displays in various digital and instrumented projects.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Decoder Type: BCD to 7-Segment.
Package Type: DIP-16 (Dual In-line Package).
Number of Pins: 16.
Supply Voltage Range: 3V to 15V.
Maximum Quiescent Current: 5 µA.
Operating Temperature Range: -55°C to 125°C.
Output Current High: -25 mA.
Output Current Low: 25 mA.
Input Voltage Low (Max): 1.5V.
Input Voltage High (Min): 3.5V.
Lamp Test Current: 30 mA.
Propagation Delay Time: 150 ns.
Latch Enable Input Voltage: 0.8 to 1.0 VDD.
Blanking Input Voltage: 0.3 to 0.5 VDD.
