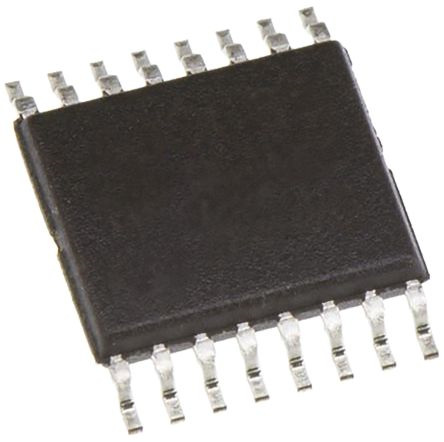

AD7746ARUZ IC CAPACITANCE TO DIGITAL Converter 24 BIT - 16 PIN TSSOP
SKU: INC-0061-C03
Sold by Select Automation
Final price R 436.39
R 379.47 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Analog Devices designed the AD7746ARUZ, a high accuracy, 24-bit capacitance-to-digital converter (CDC) with an integrated temperature sensor.
This high-precision converter's ability to directly digitize capacitance, as well as its incorporation of a temperature sensor, make it a versatile choice for a variety of applications, including automotive, industrial, and medical.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Resolution: 24 Bits (21 Effective Bits).
Capacitance Input Range: ±4 pF (changing), 17 pF (common-mode).
Temperature Sensor Accuracy: ±0.1°C Typical, ±2°C Maximum.
Supply Voltage Range: 2.7V to 5.25V.
Power Consumption: 0.7 mA.
Operating Temperature Range: -40°C to 125°C.
Maximum Capacitance Conversion Time: 8.2 ms.
Serial Interface: I2C-Compatible.
Package Type: 16-pin TSSOP.
Linearity: ±0.01%.
Full-Scale Error: ±0.04%.
Hysteresis: ±0.5 fF.
Excitation Voltage Range: 1.4V to 1.9V.
