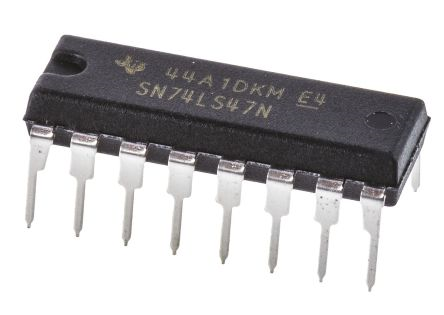

SN74LS47N, Decoder, Driver, Inverting, 4.75, 5.25 V, 16-Pin PDIP
SKU: INC-0064-C03
Sold by Select Automation
Final price R 37.36
R 32.49 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SN74LS47N is a BCD (Binary Coded Decimal) to 7-segment decoder/driver integrated circuit designed to drive common anode 7-segment displays.
This integrated circuit transforms BCD inputs into equivalent 7-segment display outputs, allowing numeric values to be displayed clearly and crisply on LED displays.
It runs at 4.75V to 5.25V and has inverting outputs to accommodate typical anode configurations, making it suitable for a variety of digital display applications.
Overall, the SN74LS47N is a must-have component for applications and devices that require efficient and dependable numerical displays, thanks to its inverting outputs, high drive capabilities, and sturdy performance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Decoder/Driver Type: BCD to 7-Segment.
Package Type: 16-pin PDIP (Plastic Dual In-line Package).
Supply Voltage Range: 4.75V to 5.25V.
Quiescent Current: 8 mA.
Operating Temperature: 0°C to 70°C.
Output Source Current: 24 mA (max per segment).
Lamp Test Input Voltage: VLTVCC: V.
Blanking Input Voltage: VBL: 0.8 VCC.
Propagation Delay Time: 35 ns.
Low-Level Input Voltage: VIL: 0.8 V (Max).
High-Level Output Voltage: VOH: 2.4 V (Min).
