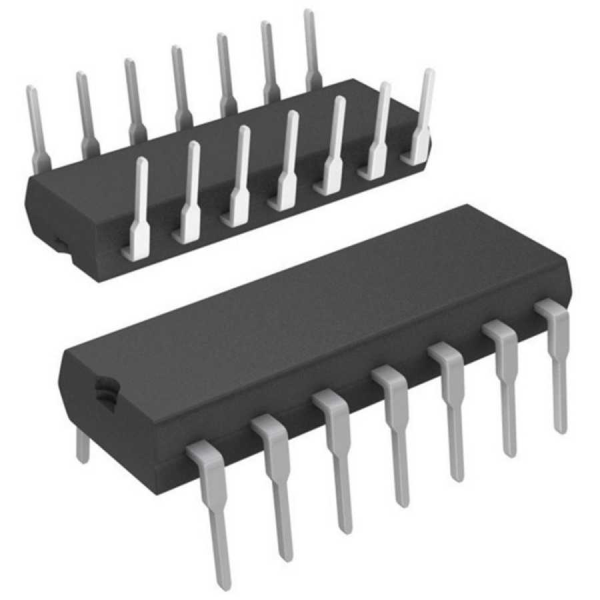

74HC12GAPZETEX QUAD INVERTING TRIGGER STATE BUFFER 14 PIN 2 - 6V
SKU: INC-0066-C03
Sold by Select Automation
Final price R 6.41
R 5.57 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 74HC125D is a quad buffer/line driver IC with three state outputs.
Each buffer has an own output enable (OE) input, which allows the outputs to be switched to a high-impedance state as needed.
This IC functions efficiently throughout a supply voltage range of 2V to 6V, making it appropriate for a wide range of applications.
The 74HC125D integrated circuit includes four high-speed buffers with independent enables, making it ideal for use in a variety of high-speed digital circuits.
It provides both flexibility and dependability for regulating data flow and signal amplification across multiple systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Buffer Type: Quad Load Inverting Trigger State Buffer.
Package Type: 14-pin SOIC (Small Outline Integrated Circuit).
Number of Buffers: 4.
Supply Voltage Range: 2V to 6V.
Quiescent Current: 40 µA.
Operating Temperature Range: -40°C to 125°C.
Maximum Propagation Delay: 12 ns.
Output Current High (IOH): -4 mA.
Output Current Low (IOL): 4 mA.
Input Voltage Range: 0V to VCC.
Noise Immunity: High.
Input Protection: Clamping Diodes.
