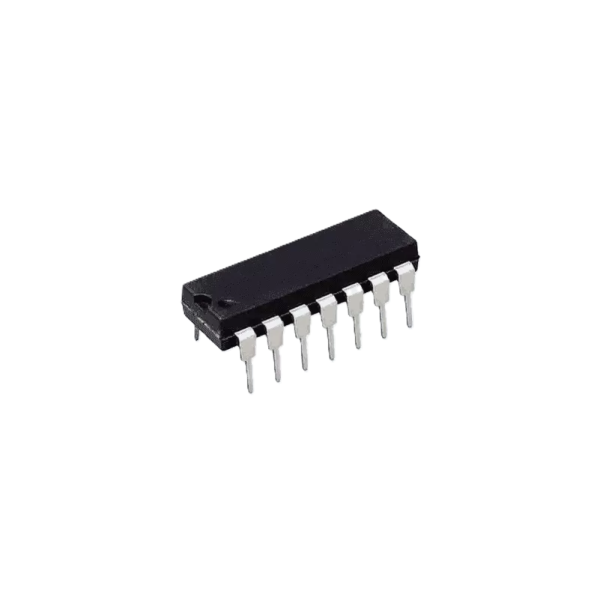

MC74HC04B1 Integrated circuit, hex 1-input inverter gate dip14
SKU: INC-0068-C03
Sold by Select Automation
Final price R 27.09
R 23.56 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The MC74HC04B1 is a hex inverter IC with six separate inverters.
Each inverter executes the Boolean NOT function, which converts a high input (logic 1) to a low output (logic 0), and vice versa.
This integrated circuit (IC) is packaged in a 14-pin dual in-line package (DIP) and is intended for use in digital logic circuits, with high-speed performance and low power consumption.
The MC74HC04B1 integrated circuit is adaptable and useful in a variety of digital systems.
It incorporates several inverters, allowing for efficient logic operations with minimal power consumption and great noise immunity.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Inverter Type: Hex Inverter (6 Inverters).
Package Type: 14-Pin DIP (Dual In-line Package).
Number of Inverters: 6.
Supply Voltage Range: 2V to 6V.
Quiescent Current: 40 µA.
Operating Temperature Range: -40°C to 125°C.
Maximum Propagation Delay: 9 ns.
Output Current High (IOH): -4 mA.
Output Current Low (I;OL): 4 mA.
Input Voltage Range: 0V to VCC.
Noise Immunity: High.
Input Protection: Clamping Diodes.
Schmitt Trigger Action: Yes.
