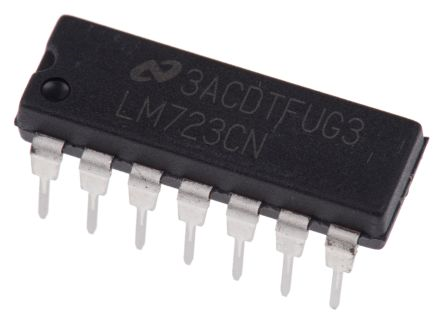

LM723CN/NOPB Linear Voltage Regulator, 150mA, Adjustable, 2, 37 V 14-Pin, MDIP
SKU: INC-0069-C03
Sold by Select Automation
Final price R 29.26
R 25.44 excl. VAT
Availability: In Stock (3 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The LM723CN/NOPB is a voltage regulator integrated circuit (IC) that provides a consistent output voltage in a wide range of applications.
Capable of producing up to 150mA on its own, it can accommodate greater currents with the addition of external pass transistors.
The LM723CN/NOPB is a highly adaptable regulator integrated circuit that is appropriate for a wide range of applications needing steady and precise voltage regulation.
Its flexibility to function as a linear or switching regulator, combined with support for high output currents via additional transistors, makes it useful in a variety of electronic systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Regulator Type: Adjustable Linear.
Package Type: 14-pin MDIP (Dual In-line Package).
Output Voltage Range: 2V to 37V.
Maximum Output Current: 150mA (extendable with external pass transistors).
Input Voltage Range: 9.5V to 40V.
Quiescent Current: 1 mA.
Line Regulation: 0.01%.
Load Regulation: 0.03%.
Ripple Rejection: 74 dB.
Operating Temperature Range: 0°C to 70°C.
Reference Voltage: 7.15V.
Current Limit: Adjustable.
Temperature Stability: 0.003%/°C.
