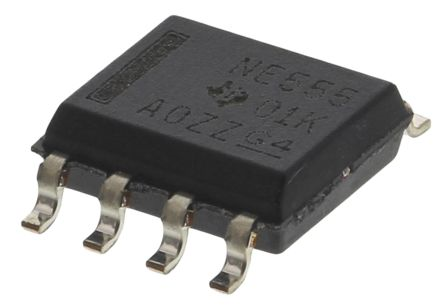

NE555DR, Timer Circuit, 4.5, 16 V, 8-Pin SOIC
SKU: INC-0071-C03
Sold by Select Automation
Final price R 3.91
R 3.40 excl. VAT
Availability: In Stock (20 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The NE555DR is a precision timing circuit that can generate accurate time delays or oscillations.
It can function in both astable and monostable modes.
In astable mode, it works as an oscillator, producing continuous pulses.
It generates a single output pulse when activated in monostable mode.
Adjusting the external resistor and capacitor values allows you to customize the duration of the output pulse or the frequency of oscillation.
The device's output is TTL-compatible, making it straightforward to connect with digital logic circuits.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Timer Type: Single Precision Timer.
Package Type: 8-pin SOIC (Small Outline Integrated Circuit).
Supply Voltage Range: 4.5V to 16V.
Output Current High: 200mA (maximum).
Operating Temperature Range: -55°C to 125°C.
Timing Range: Microseconds to Hours.
Output Type: TTL-Compatible.
Astable Frequency Range: Up to 500kHz.
Input Impedance: 107 Ω.
Trigger Voltage: 1/3 VCC.
Threshold Voltage: 2/3 VCC.
Discharge Current: 200mA.
