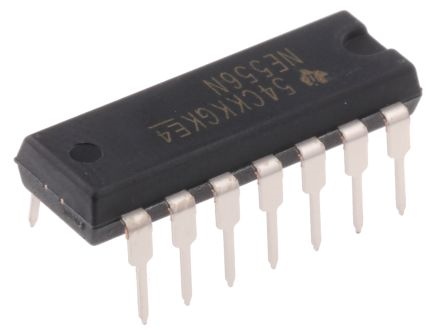

NE556N, Timer Circuit Dual, 4.5, 16 V, 14-Pin PDIP
SKU: INC-0072-C03
Sold by Select Automation
Final price R 12.33
R 10.72 excl. VAT
Availability: In Stock (24 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The NE556N dual timer has two separate timing circuits that can operate in astable or monostable modes.
The precision architecture enables the construction of accurate time delays ranging from microseconds to hours.
Its high current drive capability and wide voltage range make it ideal for a wide range of applications, including timers, oscillators, pulse generators, and others.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Timer Type: Dual Timer.
Package Type: 14-pin PDIP (Plastic Dual In-line Package).
Supply Voltage Range: 4.5V to 16V.
Output Current: 200mA (maximum).
Operating Temperature Range: -40°C to 125°C.
Timing Range: Microseconds to Hours.
Astable Frequency Range: Up to 1 MHz.
Duty Cycle: Adjustable.
Quiescent Current: 10 mA.
Trigger Voltage: 1/3 VCC.
Threshold Voltage: 2/3 VCC.
Output Type: TTL-Compatible.
Propagation Delay: 500 ns.
Temperature Stability: 0.005% per °C.
