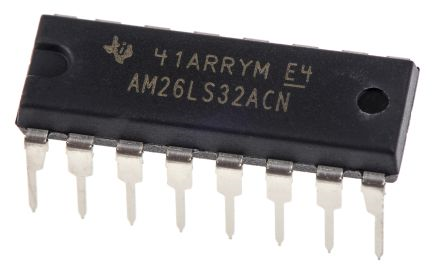

AM26LS32ACN, Quad Line Receiver, 5 V, 16-Pin PDIP
SKU: INC-0076-C04
Sold by Select Automation
Final price R 15.07
R 13.10 excl. VAT
Availability: In Stock (8 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The AM26LS32ACN includes four independent line receivers that meet the RS-422 and RS-423 standards.
It is intended to provide excellent noise immunity and stable performance in tough situations.
The AM26LS32ACN is intended to deliver reliable performance for RS-422 and RS-423 differential line communication.
It provides excellent noise immunity, ensuring dependable data transfer in industrial, telecommunications, and instrumentation applications.
Its TTL-compatible outputs allow for simple integration with common logic circuits.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Receiver Type: Quad Line Receiver.
Package Type: 16-pin PDIP.
Supply Voltage Range: 4.75V to 5.25V.
Receiver Hysteresis: 50 mV.
Differential Input Voltage: ±12V.
Common-Mode Voltage Range: -7V to +12V.
Input Resistance: 12 kΩ.
Propagation Delay Time: 18 ns.
Output Current High: 800 µA.
Output Current Low: 16 mA.
Operating Temperature Range: -20°C to 85°C.
Storage Temperature Range: -65°C to 150°C.
