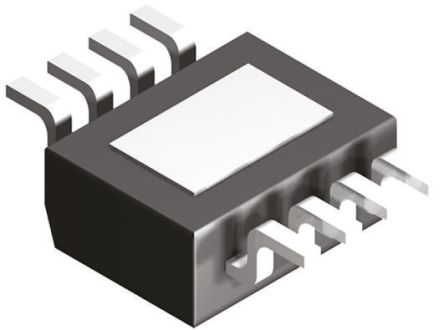

L5973D013TR Step-Down Switching Regulator 3.5A Adjustable 8-Pin, HSOP
SKU: INC-0077-C04
Sold by Select Automation
Final price R 47.16
R 41.01 excl. VAT
Availability: In Stock (4 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The L5973D013TR is a monolithic power switching regulator that can deliver a continuous output current of up to 3.5A while maintaining a normal current limit of 2.5A.
The gadget includes an inbuilt P-channel D-MOS transistor and works at a fixed frequency.
The L5973D013TR is a versatile and efficient switching regulator suitable for a wide range of power management applications.
It can handle high current loads and offers excellent regulation over a wide input and output voltage range.
Its built-in protection mechanisms enable consistent performance in a variety of settings.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Device Type: Step-Down Switching Regulator.
Package Type: 8-pin HSOP.
Output Current: 3.5A (continuous).
Switching Frequency: 250 kHz.
Input Voltage Range: 4V to 36V.
Output Voltage Range: 1.235V to 35V.
Typical Current Limit: 2.5A.
Efficiency: High.
Operating Temperature Range: -40°C to +150°C (junction).
