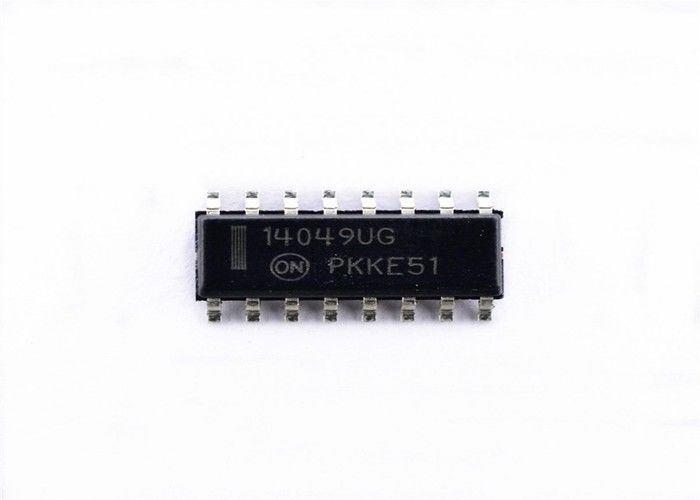

MC14049UBDR2G, Hex Inverting 3-State Buffer, -0.5, 18 V, 16-Pin SOIC
SKU: INC-0078-C04
Sold by Select Automation
Final price R 7.38
R 6.42 excl. VAT
Availability: In Stock (20 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The MC14049UBDR2G hex inverting 3-state buffer is constructed using complementary MOS (CMOS) technology and is intended to provide good noise immunity and low power dissipation.
It has six inverting buffers with high sink and source current capability.
The MC14049UBDR2G hex inverting 3-state buffer is useful in digital applications that require good noise immunity and low power consumption.
Bus-oriented systems can benefit from its 3-state feature, which let numerous devices to utilize common bus lines without interfering with one another.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Buffer Type: Hex Inverting 3-State Buffer.
Package Type: 16-pin SOIC.
Number of Buffers: 6.
Supply Voltage Range: 3V to 18V.
Quiescent Current: 4 μA.
Operating Temperature Range: -55°C to 125°C.
Output Current High: -4.7 mA.
Output Current Low: 30 mA.
Input Voltage Range: -0.5V to VDD + 0.5V.
Power Dissipation: 740 mW.
Propagation Delay: 120 ns at 5V, 65 ns at 10V, 50 ns at 15V.
