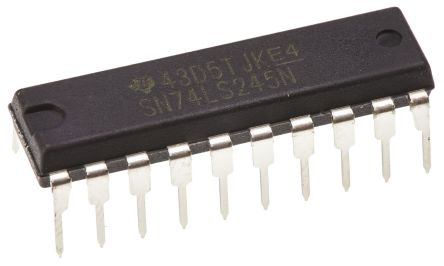

SN74LS245N, Bus Transceiver, 8-Bit Non-Inverting TTL, 4.75 to 5.25 V, 20-Pin PDIP
SKU: INC-0082-C04
Sold by Select Automation
Final price R 21.09
R 18.34 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SN74LS245N is an 8-bit non-inverting bus transceiver that allows for bidirectional data transfer across a bus.
This component is particularly useful in systems that require several data lines to be driven and connected.
This transceiver is essential for assuring consistent and rapid data transfer in a variety of electrical devices.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage (Vcc): 4.75V to 5.25V.
High-Level Input Voltage (VIH): 2V minimum.
Low-Level Input Voltage (VIL): 0.8V maximum.
High-Level Output Current (IOH): -15mA.
Low-Level Output Current (IOL): 24mA.
Propagation Delay Time (tpd): 8ns.
Power Dissipation: 500mW.
Thermal Resistance: 64°C/W (Junction-to-Ambient).
Operating Temperature Range: 0°C to 70°C (Commercial Grade).
