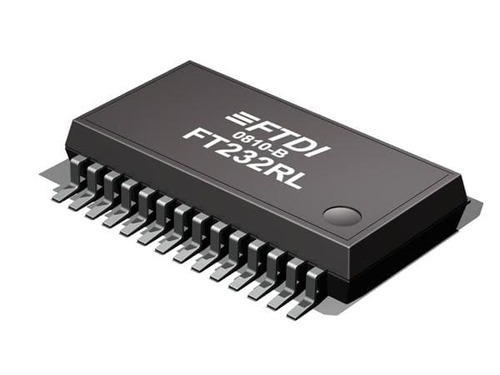

FT232RL USB to Serial UART 3MBd, 28-Pin, SSOP
SKU: INC-0083-C04
Sold by Select Automation
Final price R 127.45
R 110.83 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
FTDI's FT232RL is a versatile and highly integrated USB to Serial UART interface IC.
This device is commonly used in a variety of applications to ensure smooth and effective communication between USB ports and serial interfaces.
The FT232RL chip offers a simple and reliable alternative for integrating USB connectivity to a variety of applications, improving both functionality and user experience.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Data Transfer Rate: Supports up to 3 Mbaud.
USB Compliance: USB 2.0 Full Speed.
Supply Voltage (VCC): 4.4V to 5.25V.
I/O Voltage: 3.3V to 5.5V.
Output Drive Strength: 4mA.
Current Consumption: 15mA typical for normal operation (excluding USB and driving conditions).
Operating Temperature Range: -40°C to +85°C.
Interface Specifications:
UART Interface: Supports standard UART signals (TX, RX, RTS, CTS, DSR, DTR, DCD, RI).
Bit Bang Mode: Asynchronous and Synchronous Bit Bang interface options.
Clock Generator: Provides output clock frequencies of 6MHz, 12MHz, 24MHz, and 48MHz.
