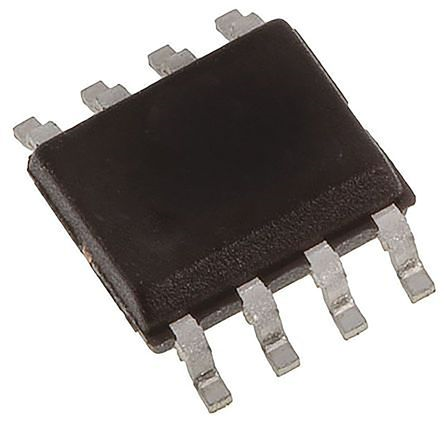

SN75HVD1176D, Line Transceiver, RS-485, 5 V, 8-Pin SOIC
SKU: INC-0084-C04
Sold by Select Automation
Final price R 89.86
R 78.14 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Texas Instruments' SN75HVD1176D is an RS-485-line transceiver with exceptional performance and durability.
This transceiver is made to provide dependable communication over extended distances and is appropriate for a range of industrial applications.
The SN75HVD1176D's rugged architecture and rich feature set make it a good choice for assuring dependable communication in a variety of industrial and commercial applications.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Supply Voltage (VCC): 4.75V to 5.25V.
Supply Current: 6mA.
Data Rate: Supports up to 40 Mbps.
ESD Protection: 10kV HBM (Human Body Model).
Common-Mode Voltage Range: -15V to +15V.
Receiver Input Resistance: 48kΩ minimum.
Input Sensitivity: ±200mV maximum.
Differential Output Voltage: 1.5V (with 54Ω load).
Driver Short-Circuit Current: ±250mA maximum.
Timing Specifications:
Propagation Delay Time (Low to High): 10ns.
Propagation Delay Time (High to Low): 10ns.
Skew (High to Low & Low to High): 1ns maximum.
