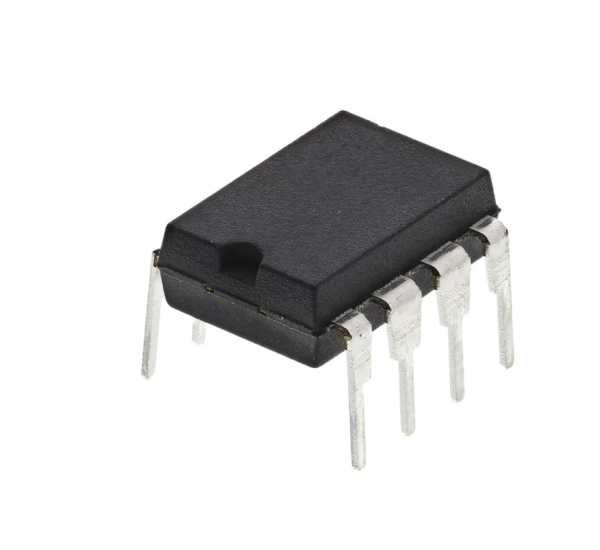

SN75176BP Bus Transceiver, 8-Pin PDIP
SKU: INC-0085-C04
Sold by Select Automation
Final price R 22.34
R 19.43 excl. VAT
Availability: In Stock (11 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SN75176BP is a flexible differential bus transceiver from Texas Instruments designed for demanding communication settings.
It is designed for long-distance bidirectional data transmission and is compliant with both the RS-422 and RS-485 standards.
The SN75176BP's combination of strong noise immunity, thermal protection, and adaptability makes it an outstanding choice for dependable communication in harsh settings.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage (VCC): 4.75V to 5.25V.
Bus Voltage Range: -7V to +12V.
Input Resistance: 12kΩ minimum.
Output Voltage Swing: ±1.5V minimum with 54Ω load.
Data Rate: Up to 10 Mbps.
Differential Input Voltage Threshold: ±0.2V maximum.
Driver Short-Circuit Output Current: 250mA maximum.
Receiver Output Current: 8mA maximum.
Power Dissipation: 500mW maximum.
Thermal Resistance, Junction to Ambient (θJA): 100°C/W.
Operating Temperature Range: 0°C to 70°C.
Storage Temperature Range: -65°C to 150°C.
Timing Specifications:
Propagation Delay (Driver): 25ns maximum from high to low.
Propagation Delay (Receiver): 25ns maximum from high to low.
Skew: 5ns maximum between high to low transition times.
