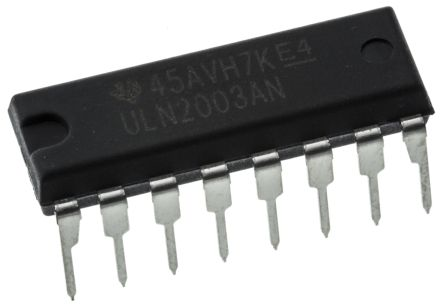

ULN2003AN, 7-element NPN Darlington Pair, 500 mA 50 V, 16-Pin PDIP
SKU: INC-0086-C04
Sold by Select Automation
Final price R 10.25
R 8.91 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Texas Instruments manufactures the ULN2003AN, a highly integrated 7-element NPN Darlington transistor array.
It is intended to connect low-level logic outputs to higher-voltage, higher-current loads.
The ULN2003AN is widely utilized due to its adaptability and robustness, providing a dependable interface between low-level control signals and higher-power loads.
With built-in protection features and simple integration capabilities, it is a popular choice for a wide range of electronic and industrial applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Maximum Output Voltage (VCE): 50V.
Output Current (Continuous) per Channel: 500mA.
Input Voltage (VIH): 2.7V minimum (High-level input voltage).
Saturation Voltage (VCE(sat)): 1.6V typical at 350mA.
Clamp Diode Forward Voltage (VF): 1.7V maximum at 350mA.
Collector-Base Breakdown Voltage (VCBO): 60V minimum.
Collector-Emitter Breakdown Voltage (VCEO): 50V minimum.
Emitter-Base Breakdown Voltage (VEBO): 5V minimum.
Power Dissipation (PD): 2.2W maximum at TA=25°C.
Supply Current (IC): 10μA maximum.
Thermal Characteristics:
Thermal Resistance, Junction-to-Ambient (θJA): 55°C/W.
Operating Temperature Range: -20°C to +85°C.
Storage Temperature Range: -55°C to +150°C.
