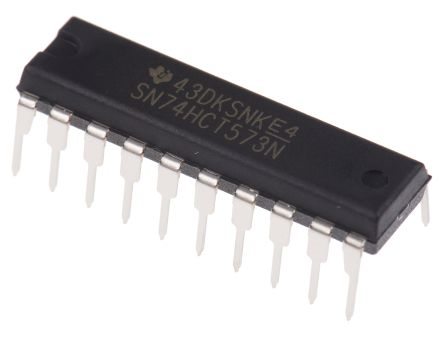

SN74HCT573N Octal Latch, Transparent D Type, 3 State, 20-Pin PDIP
SKU: INC-0087-C04
Sold by Select Automation
Final price R 5.93
R 5.16 excl. VAT
Availability: In Stock (7 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Texas Instruments' SN74HCT573N is an octal transparent D-type latch with three-state outputs that is designed to offer efficient and reliable data latching and buffering in a variety of digital systems.
The SN74HCT573N is a versatile and dependable component for a variety of applications, with effective data latching and buffering features.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage (VCC): 4.5V to 5.5V.
High-Level Input Voltage (VIH): 2V minimum.
Low-Level Input Voltage (VIL): 0.8V maximum.
High-Level Output Voltage (VOH): 2.4V minimum at 4mA.
Low-Level Output Voltage (VOL): 0.4V maximum at 4mA.
Quiescent Supply Current (ICC): 80µA maximum.
Output Current per Pin (IOH/IOL): ±6mA.
Input Current (II): 5µA maximum.
Propagation Delay Time, Latch Enable to Output (tpd): 21ns.
Turn-off Time, Output Enable to High-Z State (toff): 20ns.
Power Dissipation Capacitance (CPD): 35pF.
Thermal Resistance, Junction to Ambient (θJA): 67°C/W.
Operating Temperature Range: -40°C to +85°C.
Storage Temperature Range: -65°C to +150°C.
