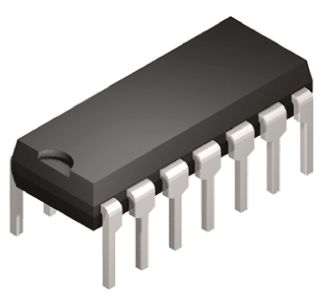

SN7400N QUAD 2 INPUT NAND LOGIC GATE 4.75 - 5.25V 14 PIN PDIP
SKU: INC-0088-C04
Sold by Select Automation
Final price R 26.14
R 22.73 excl. VAT
Availability: In Stock (4 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SN7400N is a Texas Instruments quad 2-input NAND gate integrated circuit designed for high-speed logical operations in digital systems.
The SN7400N is a versatile and dependable NAND gate IC that is ideal for a wide range of logic-based applications in digital electronics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage (VCC): 4.75V to 5.25V.
High-Level Input Voltage (VIH): 2V minimum.
Low-Level Input Voltage (VIL): 0.8V maximum.
High-Level Output Voltage (VOH): 2.4V minimum at 400µA.
Low-Level Output Voltage (VOL): 0.4V maximum at 16mA.
High-Level Input Current (IIH): 20µA maximum.
Low-Level Input Current (IIL): -0.4mA maximum.
Propagation Delay Time (tpd): 11ns typical, 16ns maximum.
Output Current (IOH/IOL): -400µA (High-level), 16mA (Low-level).
Power Dissipation (PD): 500mW maximum.
Quiescent Supply Current (ICC): 6mA maximum.
Thermal Resistance, Junction to Ambient (θJA): 80°C/W.
Operating Temperature Range: 0°C to +70°C.
Storage Temperature Range: -65°C to +150°C.
