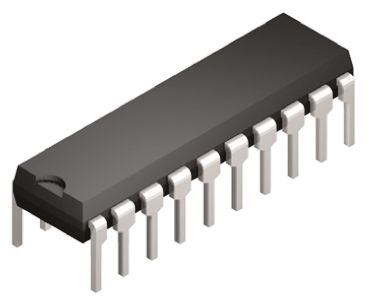

SN74LS688N 8 BIT - BIT IDENTITY COMPARATOR PUSH PULL INVERTING 4.85 - 5.25V 20 PIN
SKU: INC-0089-C04
Sold by Select Automation
Final price R 48.30
R 42.00 excl. VAT
Availability: In Stock (4 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
A flexible 8-bit identity comparator, the SN74LS688N is made by Texas Instruments for high-speed digital systems that need to compare data quickly and accurately.
The SN74LS688N is a dependable component for precise data comparison and error detection in a variety of high-speed digital applications.
Its durable construction and diverse characteristics make it an indispensable component of many digital systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage (VCC): 4.85V to 5.25V.
High-Level Input Voltage (VIH): 2V minimum.
Low-Level Input Voltage (VIL): 0.8V maximum.
High-Level Output Voltage (VOH): 2.7V minimum at -400µA.
Low-Level Output Voltage (VOL): 0.5V maximum at 24mA.
High-Level Input Current (IIH): 20µA maximum.
Low-Level Input Current (IIL): -0.4mA maximum.
Output Current (IOH/IOL): ±24mA (High-level and Low-level).
Quiescent Supply Current (ICC): 6mA maximum.
Propagation Delay Time (tpd): 23ns maximum at 5V, 45pF load capacitance.
Power Dissipation (PD): 500mW maximum.
Thermal Resistance, Junction to Ambient (θJA): 67°C/W.
Operating Temperature Range: 0°C to 70°C.
Storage Temperature Range: -65°C to +150°C.
