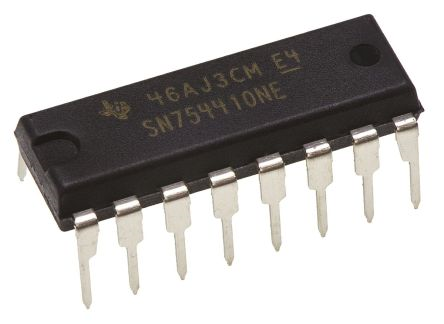

SN75441DNE GENERAL PURPOSE DRIVER 16 PIN

Description: The SN75441DNE, commonly known as the SN754410, is Texas Instruments' adaptable general-purpose quadruple half-H driver. The SN75441DNE's strong characteristics and numerous applications make it a good choice for driving inductive loads in a variety of industrial and commercial settings. Quadruple Half-H Drivers: Four separate half-H drivers in one package. High Output Current: Each driver can deliver up to 1A of output current, making it ideal for driving inductive loads. Wide Voltage Range: Operates within a supply voltage range of 4.5V to 36V, providing versatility in a variety of applications. Thermal Shutdown Protection: Prevents the driver from overheating by shutting down at junction temperatures of roughly 150°C. ESD Protection: Integrated electrostatic discharge protection increases a component's robustness and dependability. 3-State Outputs: More than one driver can share a bus by setting the outputs to a high-impedance state. TTL and CMOS Compatible: Inputs support both TTL and CMOS logic levels, making integration into digital systems easier. Internal clamp diodes: Protects against voltage spikes induced by inductive loads. Low Power Dissipation: The device is designed to consume as little power as possible while in operation.
