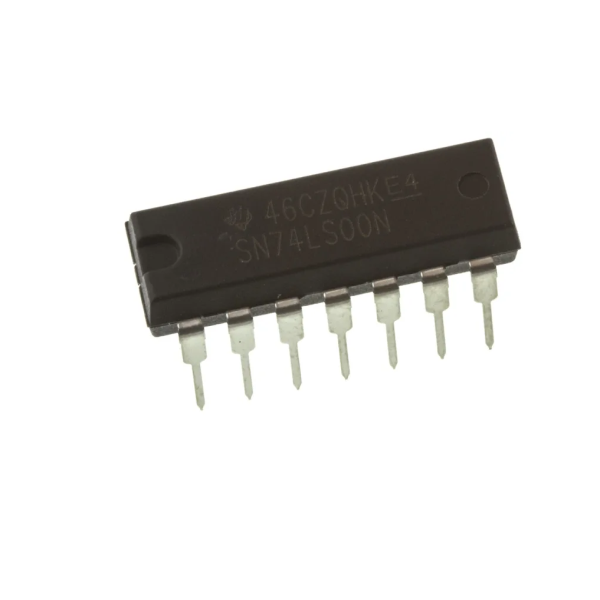

SN74ALS00AN QUAL 2 INPUT NAND LOGIC GATE 4.5 - 5.5V 14 PIN
SKU: INC-0097-C04
Sold by Select Automation
Final price R 17.81
R 15.49 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Texas Instruments' SN74ALS00AN is a flexible quadruple two-input NAND gate.
This IC is commonly utilized in digital logic applications because of its dependability and performance.
The SN74ALS00AN's sturdy features and versatility make it an excellent choice for a wide range of logic applications in digital electronics.
Quadruple 2-Input NAND Gates: consists of four distinct 2-input NAND gates.
High-speed CMOS technology ensures quick logic processing and minimal power usage.
Wide Operating Voltage Range: Operates between 4.5 and 5.5 V.
TTL-Compatible Inputs and Outputs: Supports TTL logic levels.
Power dissipation is low, making it ideal for energy-sensitive applications.
High Noise Immunity: Ensures reliable operation in electrically loud situations.
Standard 14-Pin PDIP Package: Easily integrates into through-hole PCB designs.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Supply Voltage (VCC): 4.5V to 5.5V.
High-Level Input Voltage (VIH): 2V minimum.
Low-Level Input Voltage (VIL): 0.8V maximum.
High-Level Output Voltage (VOH): 2.7V minimum at -400µA.
Low-Level Output Voltage (VOL): 0.4V maximum at 8mA.
High-Level Input Current (IIH): 20µA maximum.
Low-Level Input Current (IIL): -0.4mA maximum.
Quiescent Supply Current (ICC): 8mA maximum.
Propagation Delay Time (tpd):
From A or B to Y: 9ns.
Enable to output: 10ns.
Power Dissipation (PD): 500mW maximum.
Operating Temperature Range: 0°C to 70°C.
Storage Temperature Range: -65°C to +150°C.
Timing Specifications:
Propagation Delay Time (High to Low Transition): 9ns.
Propagation Delay Time (Low to High Transition): 9ns.
Thermal Resistance, Junction to Ambient (θJA): 80°C/W.
