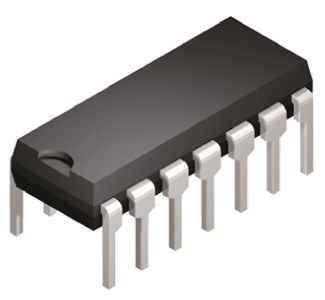

SN74HL00N QUAD 2 INPUT NAND LOGIC GATE 2 - 6V 14 PIN
SKU: INC-0098-C04
Sold by Select Automation
Final price R 11.60
R 10.09 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SN74HL00N is a quad 2-input NAND gate IC that is suited for a wide range of logic applications due to its sturdy features and versatility.
The SN74HL00N's rugged design and wide operating voltage range make it a dependable choice for a variety of logic applications in digital electronics.
Key features:
Quadruple 2-Input NAND Gates: This configuration includes four independent 2-input NAND gates, allowing for greater logical flexibility.
Wide Operating Voltage Range: Functions between 2V and 6V, ensuring compatibility with varied logic levels.
High-Speed CMOS Technology: Provides both high-speed performance and low power consumption.
Inputs and outputs are TTL-compatible, making integration with other digital circuits easier.
High Noise Immunity: Ensures reliable operation in electrically loud situations.
The standard 14-pin PDIP package allows for easy handling and incorporation into through-hole PCB designs.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Supply Voltage (VCC): 2V to 6V.
High-Level Input Voltage (VIH): 1.5V minimum at VCC = 2V, 3.85V minimum at VCC = 6V.
Low-Level Input Voltage (VIL): 0.5V maximum at VCC = 2V, 1.5V maximum at VCC = 6V.
High-Level Output Voltage (VOH): 1.9V minimum at VCC = 2V, 5.8V minimum at VCC = 6V.
Low-Level Output Voltage (VOL): 0.1V maximum at VCC = 2V, 0.4V maximum at VCC = 6V.
Input Current (II): ±1µA maximum at VCC = 6V.
Power Dissipation (PD): Low power dissipation typical to CMOS technology.
Propagation Delay Time (tpd): 15ns typical at VCC = 5V, CL = 15pF.
Operating Temperature Range: -40°C to +85°C.
