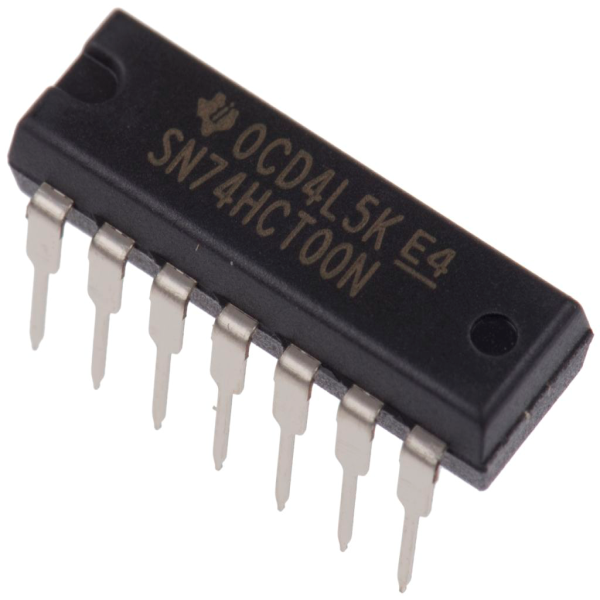

MM74HCT00N QUAD 2 INPUT NAND LOGIC GATE 14 PIN
SKU: INC-0099-C04
Sold by Select Automation
Final price R 6.30
R 5.48 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Onsemi's MM74HCT00N is a quad 2-input NAND gate integrated circuit developed for high-speed applications and built using sophisticated silicon-gate CMOS technology.
The MM74HCT00N's combination of high-speed performance, low power consumption, and rugged architecture makes it a good choice for a wide range of logic applications in digital electronics.
Quadruple 2-Input NAND Gates: consists of four distinct 2-input NAND gates.
High-Speed Operation: The typical propagation latency is 14ns, making it suited for high-speed logic circuits.
Wide Operating Voltage Range: Operates properly within a voltage range of 4.5 to 5.5 V.
Low Power Consumption: Has a low quiescent power consumption.
TTL-Compatible Inputs and Outputs: Enables simple interface with TTL-compatible devices.
High Noise Immunity: Ensures reliable operation in noisy situations.
The standard 14-pin PDIP package simplifies incorporation into through-hole PCB designs.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Supply Voltage (VCC): 4.5V to 5.5V.
High-Level Input Voltage (VIH): 2V minimum at VCC = 4.5V.
Low-Level Input Voltage (VIL): 0.8V maximum at VCC = 5.5V.
High-Level Output Voltage (VOH): 3.98V minimum at VCC = 4.5V, Iout = -20µA.
Low-Level Output Voltage (VOL): 0.1V maximum at VCC = 4.5V, Iout = 20µA.
Output Current (Iout): ±25mA per pin maximum.
Input Current (II): ±1µA maximum at VCC = 6V.
Power Dissipation (PD): 500mW maximum.
Propagation Delay Time (tpd): 14ns.
Operating Temperature Range: -40°C to +85°C.
