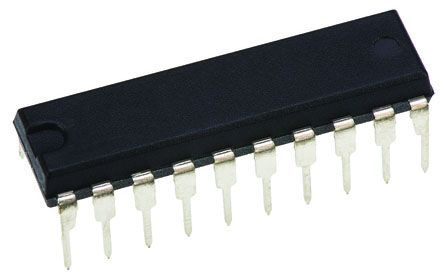

SN74HC688NE4 8BIT-BIT IDENTITY CAPARATOR INVERTING 2 - 6V 20PIN

Description: An 8-bit identity comparator from Texas Instruments, the SN74HC688NE4, is made to compare two 8-bit binary values quickly. The SN74HC688NE4 conducts 8-bit binary comparison using two sets of 8-bit inputs. If the two input words match, the output is dragged down, showing equality. This active-low output is easily usable in systems that require negative logic or where an equality signal must be implemented in a straightforward manner. The SN74HC688NE4's sturdy construction, low power consumption, and high-speed performance make it an excellent choice for a variety of digital applications that require efficient and accurate data comparison. 8-Bit Comparison: Can compare two 8-bit binary words to see if they are equal. This is necessary for data validation and error detection in digital systems. The output is active-low, indicating a match when pulled low. This simplifies the design of many digital systems that use negative logic. Wide Operating Voltage Range: Operates within a voltage range of 2V to 6V, making it suitable for a variety of logic levels. Low Power Consumption: Requires little quiescent power, making it excellent for battery-powered and low-power applications. TTL-Compatible Inputs and Outputs: Facilitates interface with TTL logic circuits, making it a versatile component for mixed-signal systems. High-Speed Performance: The usual propagation latency is 15ns, allowing for speedy and reliable data comparisons.
