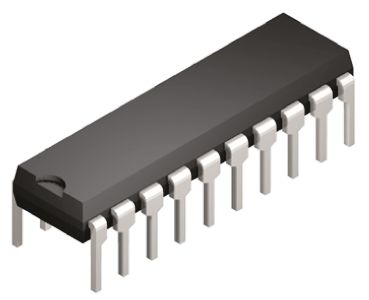

CDHCT688E 8BIT-BIT COMPARATOR 20 PIN

Description: The CDHCT688E is an 8-bit identification comparator specifically intended for high-speed digital systems. It accurately compares two sets of 8-bit binary numbers and determines whether they are equal, making it a critical component in data validation and error detection software. The CDHCT688E compares two sets of 8-bit inputs. If the input values match, the comparator lowers the output, showing equality. This active-low output design is particularly beneficial in systems that use negative logic or require simple implementation of equality signals. 8-Bit Comparison: Determines whether two 8-bit binary words are identical. This is critical for ensuring data integrity and detecting errors in digital systems. Inverting Output: The output is active-low, indicating a match when the values are the same. This characteristic facilitates the design of many digital systems that use negative logic. Wide Operating Voltage Range: Operates within a voltage range of 2V to 6V, making it suitable for a variety of logic levels. Low Power Consumption: Has a low quiescent power consumption, making it appropriate for battery-powered and low-power applications. TTL-Compatible Inputs and Outputs: Enables simple interface with TTL logic circuits, making it an adaptable component for mixed-signal systems.
