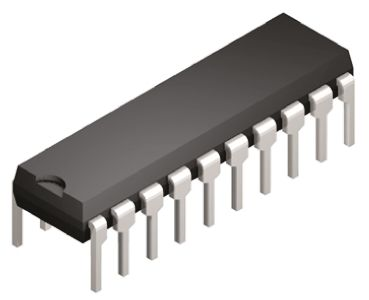

CD74HCT573E OCTAL LATCH 20 PIN
SKU: INC-0102-C05
Sold by Select Automation
Final price R 10.74
R 9.34 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The CD74HCT573E is a high-speed CMOS octal D-type transparent latch with three-state outputs, intended for use in digital systems that require temporary data store and bus interface.
The CD74HCT573E has eight D-type transparent latches with three-state outputs.
It takes and stores data from the inputs anytime the LE pin is high.
When the OE pin is low, the collected data shows at the outputs; when it is high, the outputs have a high impedance.
This capability is critical for bus-oriented systems, where several devices share the same output lines, allowing for controlled data flow while preventing bus contention.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Supply Voltage (VCC): 4.5V to 5.5V.
High-Level Input Voltage (VIH): 2V minimum.
Low-Level Input Voltage (VIL): 0.8V maximum.
High-Level Output Voltage (VOH): 2.4V minimum at -6mA.
Low-Level Output Voltage (VOL): 0.4V maximum at 6mA.
Quiescent Supply Current (ICC): 80µA.
Propagation Delay Time (tpd): 35ns.
Operating Temperature Range: -55°C to +125°C.
Storage Temperature Range: -65°C to +150°C.
